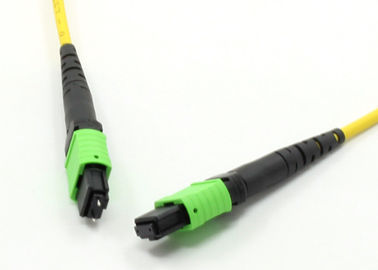

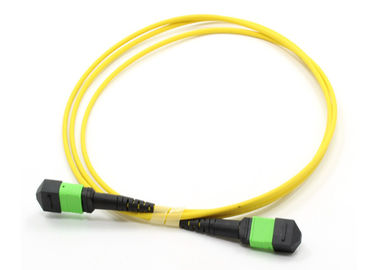

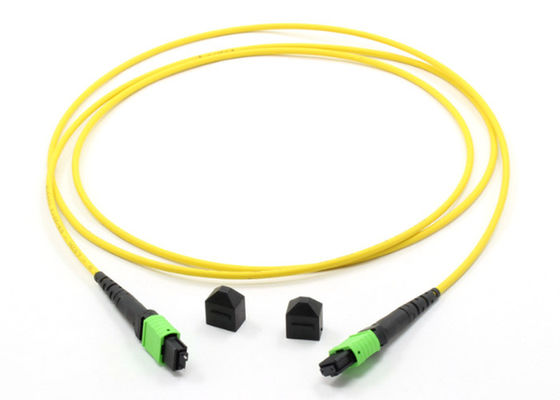

MPO MTP Trunk Cable MPO Male To MPO Female SM 8 / 12 Fiber Patch Cord
MPO MTP Cable Overview
MPO MTP trunk cables are available with 8, 12 and 24 fiber sub-units so that users can deploy Base-8, Base-12 or Base-24 infrastructures to suit their MTP connectivity requirements.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
MPO MTP Cable Application
* regional network wiring between different buildings
* optical link interconnection in optical active devices
* data communication network
* optical system access network
* storage area network fiber channel
* high-density architecture
* Rapid configuration and networking, reduce installation time
* Supports 40G and 100G network applications
* Jacket material: LSZH, OFNR, OFNP available
* Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
MPO MTP Cable Technical Parameter
| Item | Technical Parameters | |
| Connector | MPO/MTP(F or M) | MPO/MTP (F or M) |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
|
| Return Loss | SM:≥60dB; MM:≥35dB | |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 fiber | |
| Connector type of the other end | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

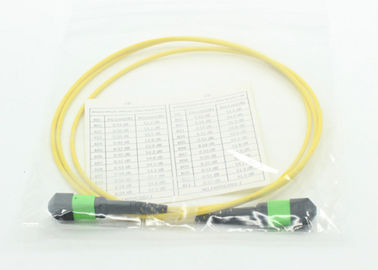

Pakcing
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
FQA
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 working days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide the sample for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
|
